KBR Crankshafts & Kits

KBR Billet Crankshaft Kit  3.250" Mains          $4,699.oo

400 - 430 - 455     Part# B25523-325

INCLUDES:

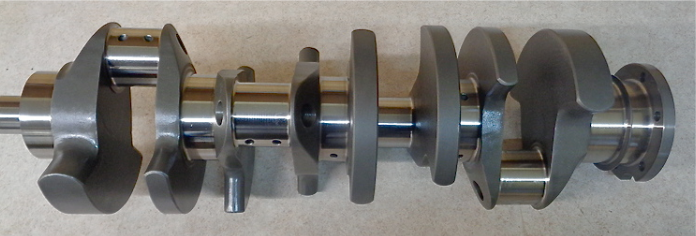

• 4.400 billet crank (3.250" mains 2.200" rods)

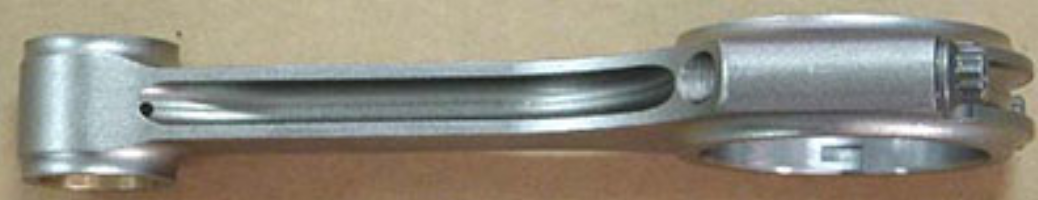

• 6.800" billet H-beam rods

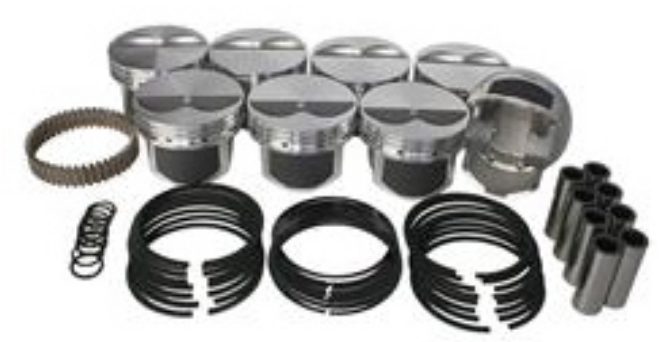

• Custom forged pistons with .990 or 1.000 pins. Your choice of compression.

• Rings 1/16" or .043"

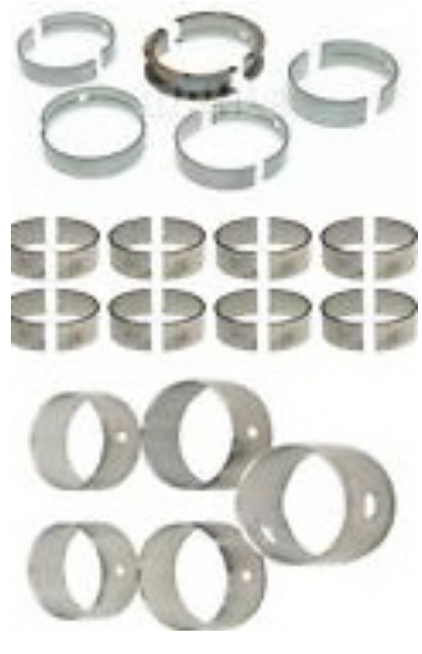

• Main bearings

• Rod bearings

• Cam bearings

BILLET CRANKSHAFT KITS

B25523-300   3.00" mains • 523" • 4.400 stroke • 2.200" rods • 4.350" bore ____________$5,299.00

B25523-325   3.25" mains • 523" • 4.400 stroke • 2.200" rods • 4.350" bore ____________$4,699.00

B25560-300   3.00" mains • 560" • 4.400 stroke • 2.200" rods • 4.500" bore ____________$5,299.00

B25560-325   3.25" mains • 560" • 4.400 stroke • 2.200" rods • 4.500" bore ____________$4,699.00

CAST CRANKSHAFT KITS

B25455-325   3.25" mains • 455" • 3.900 stroke • 2.250" rods • 4.3125" bore ___________$2,599.00

B25470-325   3.25" mains • 470" • 3.950 stroke • 2.200" rods •  4.350"  bore ___________$2,899.00

B25482-325   3.25" mains • 482" • 4.050 stroke • 2.100" rods •  4.350"  bore ___________$2,899.00

B25494-325   3.25" mains • 494" • 4.150 stroke • 2.000" rods •  4.350"  bore ___________$2,899.00

BILLET CRANKSHAFT ONLY

B2523-300      3.00" mains • 523" • 4.400 stroke • 2.200" rods • 4.350" bore ____________$3,257.00

B2523-325      3.25" mains • 523" • 4.400 stroke • 2.200" rods • 4.350" bore ____________$2,657.00

B2560-300      3.00" mains • 560" • 4.400 stroke • 2.200" rods • 4.500" bore ____________$3,257.00

B2560-325      3.25" mains • 560" • 4.400 stroke • 2.200" rods • 4.500" bore ____________$2,657.00

CAST CRANKSHAFT ONLY (Customer supplied good core only to be inspected and magnafluxed)

B2455-325      3.25" mains • 455" • 3.900 stroke • 2.250" rods • 4.3125" bore ___________$  375.00

B2470-325      3.25" mains • 470" • 3.950 stroke • 2.200" rods •  4.350"  bore ___________$  675.00

B2482-325      3.25" mains • 482" • 4.050 stroke • 2.100" rods •  4.350"  bore ___________$  675.00

B2494-325      3.25" mains • 494" • 4.150 stroke • 2.000" rods •  4.350"  bore ___________$  675.00

TO  ORDER  CALL  951-541-4750

Pre-paid by wire transfer, Venmo, or Zelle

Please note:    Custom piston sizes available upon request. Billet rods and cranks are suppied by Molnar Technologies.
