KBR CONNECTING RODS

TO  ORDER  CALL  951-541-4750

Pre-paid by wire transfer, Venmo, or Zelle

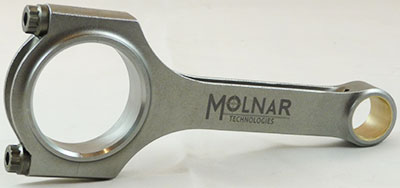

400-430-455 BILLET H-BEAM CONNECTING RODS FP = Floating Pin, PP = Press Pin

B3455-1-FP     6.600 C/C • WT 769gr • JRNL 2.249 • PIN 1.000 • BE .925 • PE 1.122        _______ $ 656.81
                          455" NHRA approved. For standard and overbore stock stroke motors
B3455-2-FP     6.600 C/C • WT 745gr • JRNL 2.249 • PIN .990 • BE .925 • PE 1.122          _______ $ 656.81
                          455" For standard and overbore stock stroke motors.
B3455-3-PP     6.607 C/C • WT 749gr • JRNL 2.249 • PIN 1.000 • BE .925 • PE 1.122        _______ $ 656.81
                          455" NHRA approved. For standard and overbore stock stroke motors
B3494-FP         6.700 C/C • WT 735gr • JRNL 2.000 • PIN .990 • BE .925 • PE 1.125          _______ $ 656.81
                          494 cubic inch motors
B3482-FP         6.800 C/C • WT 751gr • JRNL 2.100 • PIN .990 • BE .925 • PE 1.065          _______ $ 656.81
                          482 cubic inch motors
B3470-FP         6.800 C/C • WT 762gr • JRNL 2.200 • PIN .990 • BE .923 • PE 1.065          _______ $ 656.81
                          470, 523, 560 cubic inch stroker motors

PLEASE NOTE: Billet H-beam rods are machined from 4340 steel, heat treated, shot peened, HD premium bronze bushings for full floating pin type pistons.
Includes: ARP 2000 7/16" series fasteners, assembly lubricant and installation guidelines
ALL RODS ARE FINISHED AT MOLNAR TECHNOLOGIES IN MICHIGAN, to +/- .0001 of an inch
V6  BILLET H-BEAM CONNECTING RODS    FP = Floating Pin, PP = Press Pin
B3231-FP     5.600 C/C  • WT 647gr  • JRNL 2.374  • PIN 23mm  • BE .840  • PE .840    _______ $   638.70
                      Bolts 3/8  ARP2000, Buick Series ll L67 PWR ADRTM
B3232-FP     5.638 C/C  • WT 590gr  • JRNL 2.374  • PIN 23mm  • BE .840  • PE .840     _______ $   596.91
                      Bolts 3/8  ARP2000, Buick Series ll L67
B3233-FP     5.960 C/C  • WT 695gr  • JRNL 2.374  • PIN   .927  •  BE .854  •  PE .986     _______ $   596.91
                      Bolts 7/16  ARP2000, Turbo Buick w/9.27 pin
B3234-FP     5.960 C/C  • WT 695gr  • JRNL 2.374  • PIN   .940  •  BE .854  •  PE .986     _______ $   596.91
                      Bolts 7/16  ARP2000, Turbo Buick and stock replacement NA engines
B3235-FP     5.960 C/C  • WT 702gr  • JRNL 2.374  • PIN   .940  •  BE .854  •  PE .986     _______ $   596.91
                      Bolts 7/16  ARP2000, Turbo Buick On Center Block
B3236-FP     6.350 C/C  • WT 717gr  • JRNL 2.374  • PIN   .927  •  BE .854  •  PE .986     _______ $   596.91
                      Bolts 7/16  ARP2000, Turbo Buick Offset w/ narrow journal
B3237-FP     6.350 C/C  •  WT 720gr  • JRNL 2.374  • PIN   .927  •  BE .854  •  PE .986     _______ $  596.91
                      Bolts 7/16 ARP2000, Turbo Buick Offset w/ narrow journal


350  BILLET H-BEAM CONNECTING RODS   FP = Floating Pin, PP = Press Pin

B3350-1-FP    6.380 C/C  • WT 637gr  • JRNL 2.000  • PIN 1.940  • BE .840  • PE 1.010   _______ $   656.81
                        Stock replacement and high performance racing
B3350-2-FP    6.380 C/C  • WT 637gr  • JRNL 2.000  • PIN 1.927  • BE .840  • PE 1.010   _______ $   656.81
                        High performance racing with a .927 pin.
